Strong Adhesion Thermal Lamination Film Hot Melt Film High Surface Tension

Xiamen After-printing Finishing Supplies Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

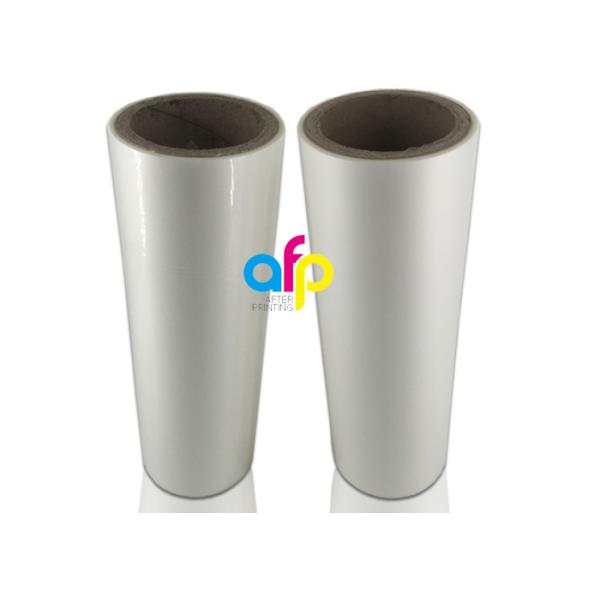

Strong Adhesion Thermal Lamination Film Hot Melt Film High Surface Tension

Brand Name : AFP

Model Number : Thermal Lamination Film

Certification : SGS, BV,

Place of Origin : Fujian, China

MOQ : 2 Tons (Mixed roll widths accepted)

Price : USD1860.00/Ton ~ USD2388.00/Ton

Payment Terms : T/T, L/C

Supply Ability : 850 Tons per month

Delivery Time : 15 - 25 working days

Packaging Details : 1-One roll one carton with plastic caps protection; 2-Tens of rolls a pallet; 3-Ten pallets a 20FCL

Material : BOPP/PET + EVA

Type : Glossy, Matt, Metallic, Holographic, etc.

Softness : Soft

Thickness : from 12micron to 350micron

Transparent : Transparency or Opaque

Roll Size : 750mm*50m, 435mm*3000m, 650mm*4000m, etc.

Corona Treatment : Double sides, over 38 dynes

Paper Core : 1inch (25.4mm), 2.3inch (58mm), 3inch (76mm),

UV Varnish Applicable : Yes

Hot Stamping Applicable : Yes

Contact Now

High Surface Tension Thermal Lamination Film with Strong Adhesion Strength, Hot Melt Film

In order to achieve satisfactory result on printed paper when the laminating process is being done, the lamination film is required to have strong adhesion strength, whose surface tension should be above 38 dynes with two sides corona treated.

Our company produces both our BOPP Thermal Lamination Film and PET Thermal Lamination Film with double sides corona treatment valued up to 52 dynes.

For hot melting the EVA adhesive of thermal lamination film onto paper substrate, we need a heat laminator, or called thermal (hot,dry) lamination roller machine.

During the process, the film is passed on a heated roller and under reasonable pressure it sticks to the paper.

Strong Adhesion Thermal Lamination Film Hot Melt Film High Surface Tension

As a professional manufacturer and supplier, we are producing thermal lamination film with various finishing appearanceas, including:

  • glossy
  • matt
  • soft touch
  • scratch resistant
  • digital/super bonding
  • embossed
  • metallized
  • laser/holographic
  • 3D/lenticular
  • glitter/sparkle

Strong Adhesion Thermal Lamination Film Hot Melt Film High Surface Tension

All the above types of thermal lamination film are at format of roll, or said laminate roll.

Thermal lamination film is workable for different ways of printing, especially offset printing.

It meets most paper or paperboard criteria, like 80gsm, 125gsm or 250gsm.

Matt thermal lamination film is performing well at spot UV Varnish and hot stamping.

Strong Adhesion Thermal Lamination Film Hot Melt Film High Surface Tension

To decide what type of thermal lamination film, it depends upon the printings.

We shall be pleased to offer advise if you need. (send request to sales@after-printing.com)

Product Technical Parameter
Transparent BOPP Thermal Lamination Film
Material Base Film BOPP (Biaxially Oriented Polypropylene) Film Thickness from 15micron to 30micron
Adhesion EVA ( Ethyl Vinyl Acetate ) Roll Width from 180mm to1880mm
Corona Treatment Single or Double Roll Length from 300m to 4000m
Sur.Tension up to 42 dynes Joint ≤1
Shelf Life 9 months Core Size 1inch (25.4mm), 3inch (76.2mm),
MOQ 2 tons (mixed width available 500mm,600mm,700mm etc.)
Application Textbook Cover, Brochures, Leaflets, Sweet Boxes, Cosmetics, Shopping Bag, Diaries
Operation Guidance
Compound Temperature 85℃ - 105℃ (185℉ - 221℉)
Compound Pressure 10-18 mpa
Compound Speed 10-60m/min

Strong Adhesion Thermal Lamination Film Hot Melt Film High Surface Tension

Product Technical Parameter
Transparent PET Thermal Lamination Film
Material Base Film PET (Polyester) Film Thickness from 12micron to 350micron
Adhesion EVA ( Ethyl Vinyl Acetate ) Roll Width from 180mm to1400mm
Corona Treatment Single or Double Roll Length from 50m to 3000m
Sur.Tension Over 52 dynes Joint ≤1
Shelf Life 12 months
Core Size 1inch (25.4mm), 2.3inch (58mm), 3inch (76.2mm)
MOQ 2 tons (mixed width available 500mm,600mm,700mm etc.)
Application Textbook Cover, Menu, Album, Brochures, Leaflets, Sweet Boxes, Cosmetics, Diaries
Operation Guidance
Compound Temperature 90℃ - 150℃ (194℉ - 302℉)
Compound Pressure 10-18 mpa
Compound Speed 10-50m/min

Strong Adhesion Thermal Lamination Film Hot Melt Film High Surface Tension

Tips:

For more product technical parameter of other types of thermal lamination film, please send request to sales@after-printing.com

What is Thermal Lamination Film ?

Thermal lamination film is produced by multi extrusion coating lines.

It is consisted of two layers. One is plastic film, of which mainly is BOPP or PET film, another layer is adhesive glue of EVA .

Thermal Lamination Film is also called dry, hot or heat lamination film.

Strong Adhesion Thermal Lamination Film Hot Melt Film High Surface Tension

How to Use Thermal Lamination Film ?

Lamination process is of joining two or more layers, aimed for protecting the prints.

we need a hot laminator, or called thermal (heat,dry) lamination roller machine, to use Thermal Lamination Film by melting its EVA adhesive onto paper surface.

During the process, the film is passed on a heated roller and under reasonable pressure it sticks to the paper.

This process is easy to use and can be done in home for small applications.

Sometimes, people also call it heat lamination or dry lamination or hot lamination.

Strong Adhesion Thermal Lamination Film Hot Melt Film High Surface Tension

Packaging & Shipping

* One Roll thermal lamination film, One carton

* Tens of rolls of thermal lamination film in a pallet

* 10 to 12 pallets loaded into 1*20FCL (appro. 13MTs)

* Or 20 to 22 pallets loaded into a 40 feet container (appro. 25MTs)

* Seaport: Xiamen, Shanghai, Ningbo

Strong Adhesion Thermal Lamination Film Hot Melt Film High Surface Tension

FAQ

About Samples

* Samples for testing are available and free

* The freight for sample delivery is at receiver's side

* But to be refunded by deducting from the right coming order automatically

* For saving the cost, we recommend the way of prepaid instead of collect

About Capacity

* 5 coating lines

* 20 days delivery of a 40 feet container

* 850 tons per month

About Responsibility and After-sale Service

* 12 months warranty

* In case of any quality problem happens, you must be equivalently compensated
